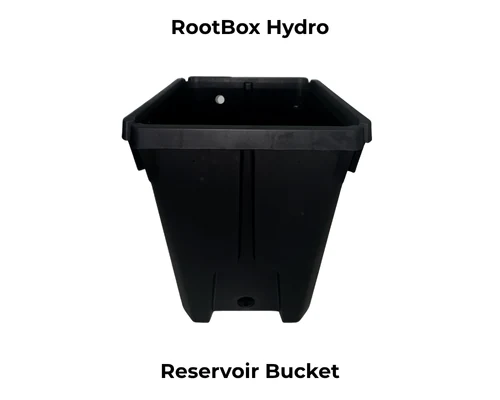

The reservoir bucket distributes water through the RDWC system and houses the water pump and water level hardware.

Specification

1 bucket

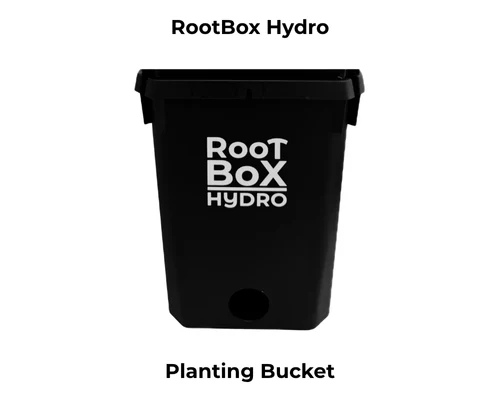

The planting buckets are the four connected grow sites where the plants are cultivated.

Specification

4 buckets

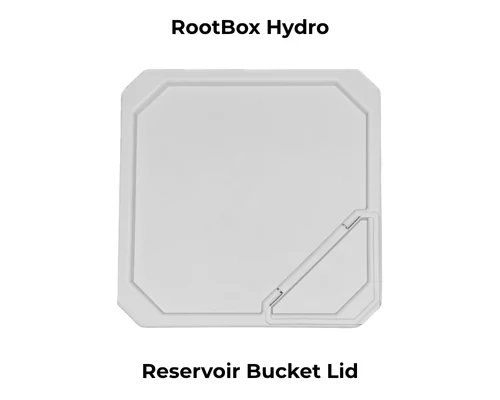

The reservoir bucket lid closes the central reservoir and supports its connected hardware.

Specification

1 lid

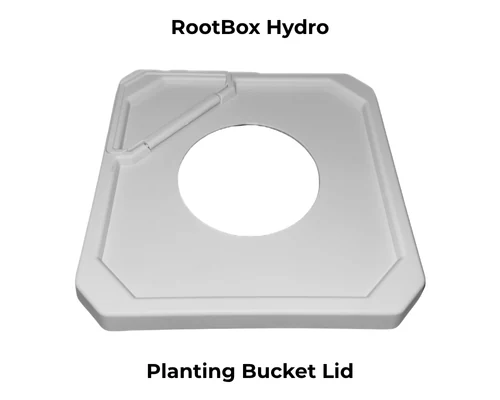

The planting bucket lids support the net pots and close the four growing buckets.

Specification

4 lids

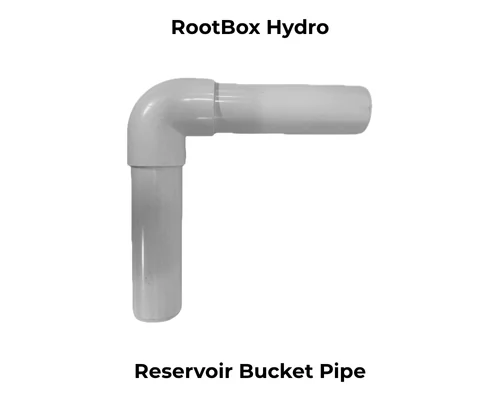

These 50 mm pipes connect the reservoir bucket to the recirculation system.

Specification

50 mm diameter

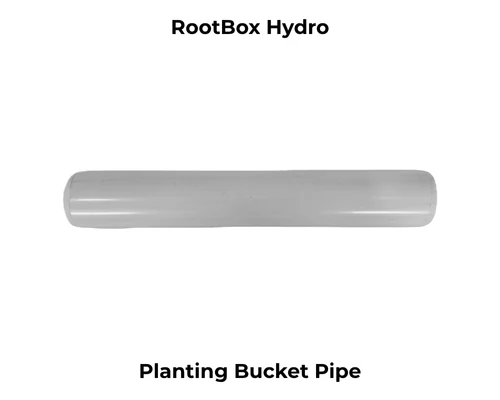

These 50 mm pipes connect the planting buckets to each other within the circulation loop.

Specification

50 mm diameter

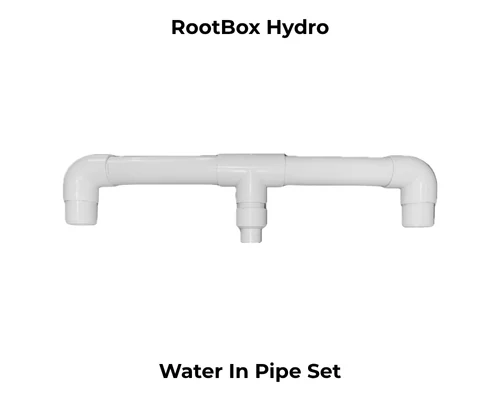

The water inlet pipe set receives the water pump outlet and distributes water toward the planting buckets.

Specification

2 elbows, 1 tee and 1 reducer

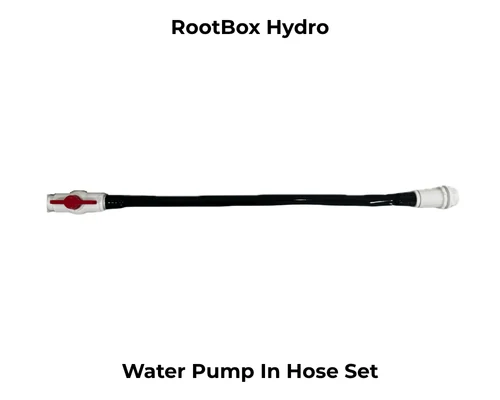

This 30 mm hose set connects the water pump to the water inlet pipe set and carries the circulating water.

Specification

30 mm diameter

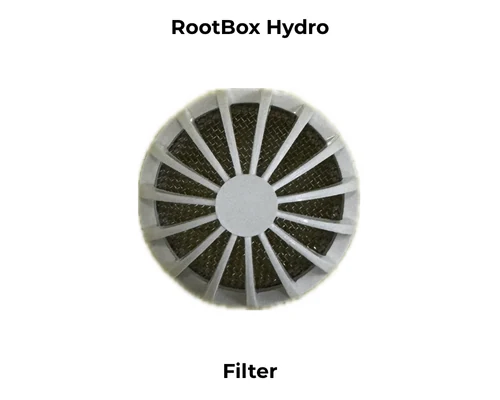

The filters connect to the water outlet pipe set on the planting bucket side and help filter the system water.

Specification

2 filters

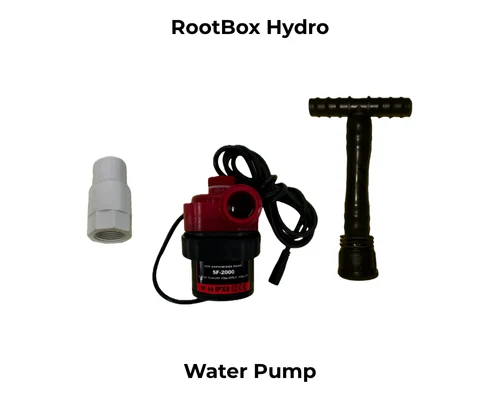

The water pump circulates the system water through the connected buckets and reservoir.

Specification

3000 L/h capacity

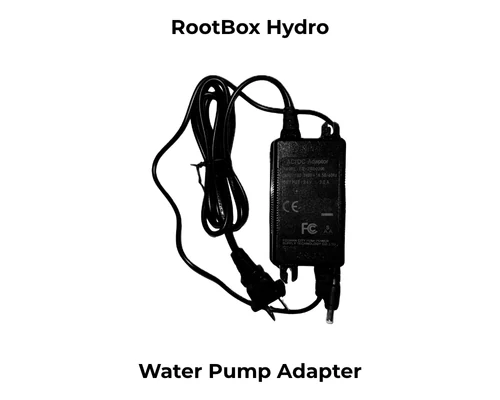

The water pump adapter supplies power to the water pump.

Specification

DC 12 V / 2 A

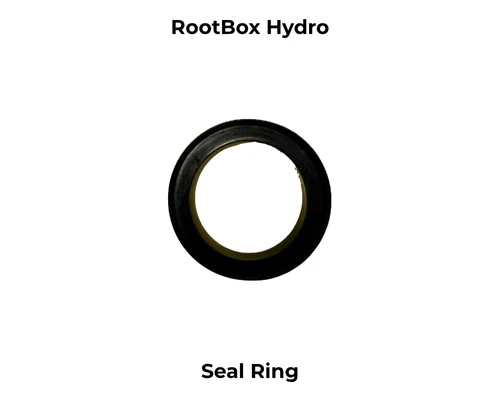

These 50 mm seal rings create watertight connections between the buckets and pipes.

Specification

50 mm diameter

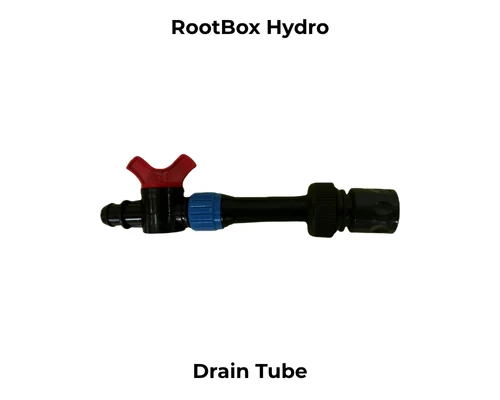

The drain tube connects to the reservoir bucket and allows the system water to be drained.

Specification

1 drain tube

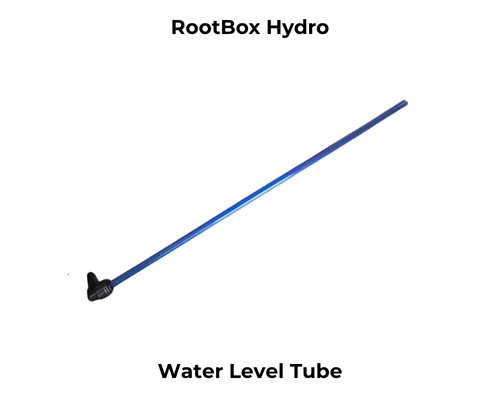

The water level tube connects to the reservoir bucket so the system water level can be monitored.

Specification

1 tube

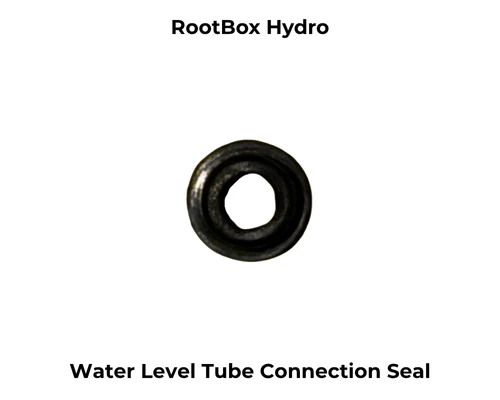

The mini seal ring keeps the water level tube connection to the reservoir bucket watertight.

Specification

1 mini seal ring

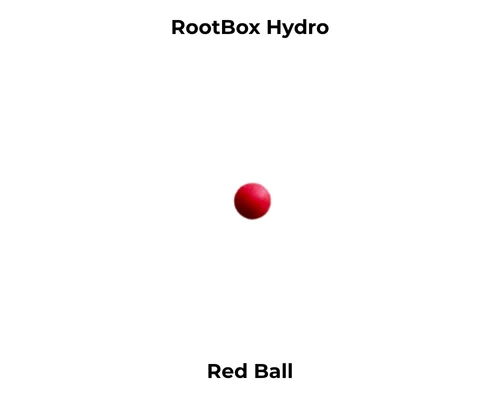

The red ball sits inside the water level tube to make the water level easier to read.

Specification

1 indicator ball

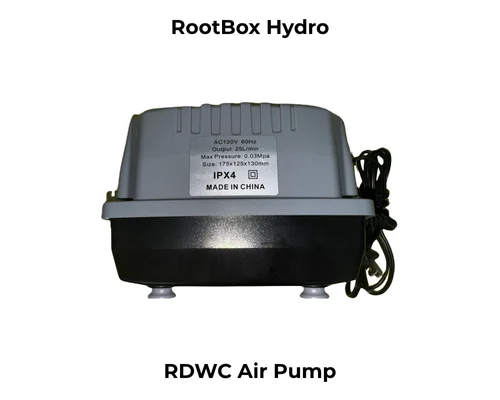

The air pump supplies air to the four planting buckets through the air divider and air hoses.

Specification

25 L/min capacity

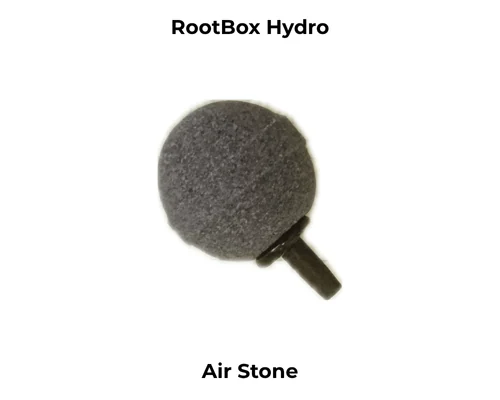

The air stones distribute air evenly into the water inside the planting buckets.

Specification

4 air stones

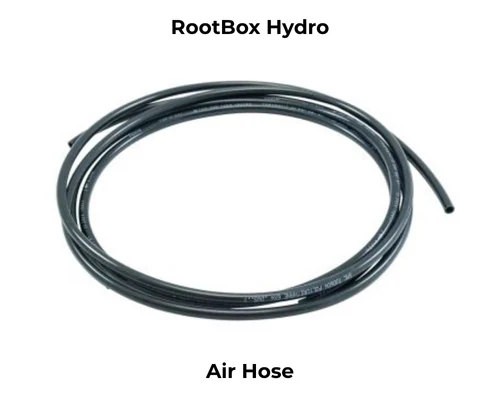

The air hoses connect the air pump and divider to the air stones in the planting buckets.

Specification

4 hoses

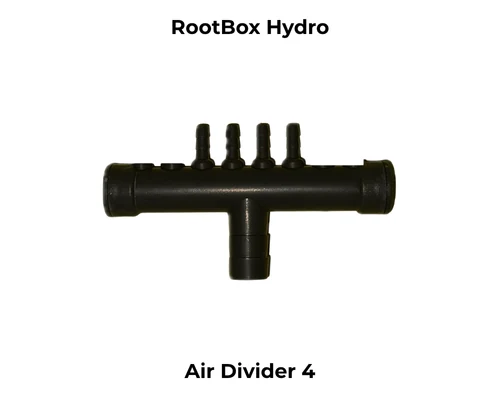

The four-outlet air divider connects to the air pump and distributes air to the air hoses.

Specification

4 outlets

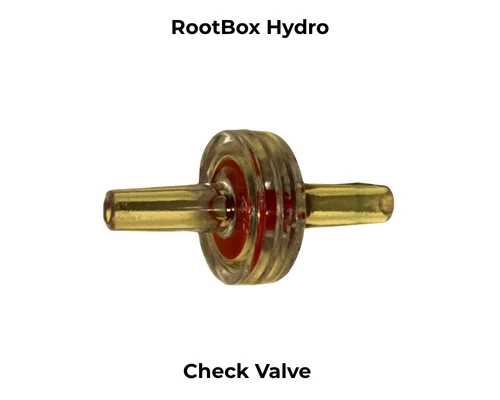

The check valves connect to the air hoses and help prevent water from flowing back toward the air pump.

Specification

4 check valves

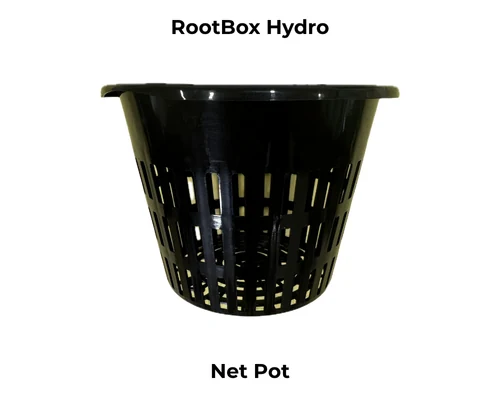

The net pots hold the plants while allowing the roots to grow into the oxygenated solution below.

Specification

4 net pots

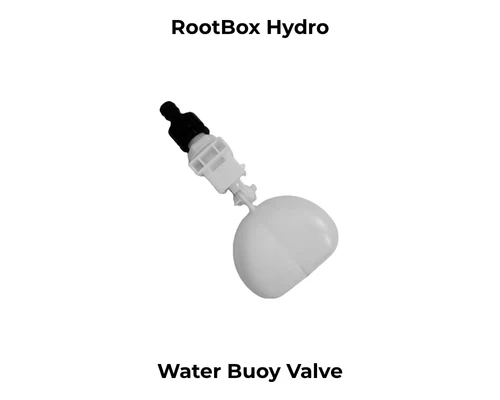

The water buoy valve connects to the reservoir bucket and helps prevent the system water from overflowing.

Specification

1 valve

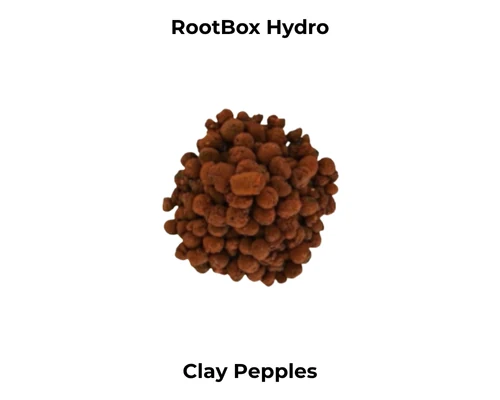

Clay pebbles sit inside the net pots and help hold the plants securely in place.

Specification

1 pack
